Shell Core, Shell Mould Casting Manufacturer
Gray Iron, Ductile Iron & SIMO Grade Quality Casting by Shell Core and Shell Mould Route
Capacity:- 700 T/month
Ratna Udyog’s foundry Division is an IATF 16949:2016 and ISO 9001:2015 certified company. We manufacture medium to high volume, small to medium sized Castings in Grey Iron and S G Iron. Our team, infrastructure & processes are capable of producing intricate Grey Iron and Ductile Iron Castings with high precision. For meeting the challenges, Ratna Udyog Team uses its ability of fast development, its flexible manufacturing approach and supporting infrastructure. Ratna Udyog has in-house machining facility which is again designed to cater to a variety of weight, size and volume requirements.
We use Shell Moulding Process to ensure high dimensional accuracy, excellent surface finish and clean internal passages in all our products. We are equipped with modern facilities like core shooters, Induction Melting, Spectrometer, Internal shot blasting, Mechanical testing equipment, casting inspection facilities like Endoscopy, Microstructure testing, hardness testing and CMM for machined component inspection. We also have reliable local tie-ups for services like Honning, Casting coating, Heat treatment etc.
Our Shell Moulding Foundry Capability
CASTING MATERIAL
Gray Iron Grades :
FG-160, FG-200, FG-260, FG-300
Ductile Iron Grades :
400/10, 450/12, 500/7, 600/3 & 700/3
All SIMO Grades
Vermicular Castings
CASTING RANGE
Weight : 0.5 Kg to 50 Kg
Size : Maximum 600mm X 400mm x 400 mm
ANNUAL VOLUME
8400 Metric Ton / Year
VALUE ADDTION
- Machining
- Phosphating
- Coating
- Painting
- Plating
- Leakage Testing
- Heat Treatment
Critical Castings & Critical Machined components manufactured by us with utmost precision
Segments We Serve
Automotive
Hydraulic
Transmission
Process Automation
Pump Manufacturer
Electric Motor Manufacturer
Our Shell Core, Shell Moulding Foundry Infrastructure
Methoding
We use Simulation Software (Virtual pouring) which predicts the complete casting process including filling, solidification, cooling and allows the qualitative prediction of various properties of the cast product. We use this facility for methoding which saves actual shop trials and saves time in producing good castings at first go. The necessary method cards are made for every item and are preserved.
Radiography tests are carried out from reputed out source as per customers’ demand.
Moulding
We use Alpha set No-bake process for Moulding and have ‘SPAN ‘make line of Core Shooters with maximum core size 600 mm x 400mmx 400mm.
Melting
At the melting section, we have Inductotherm make Induction Furnace 500 kg Tri Track facility and also a 300 kg additional furnace. The melting section has online Carbon Silicon Analyzer and molten temperature measurement facility. On line display system with colour coding, is directly connected to the Lab Spectrometer for the fast transfer of data and ease of the operators.
Pouring System
- Car track with 30 Pallets for pouring of shell moulds
- Pouring ladle movement with the help of monorail
- Up & Down movement of the ladles is carried with help of wire rope Crane
We have Various ladles from 150kg to 300Kg with Lip & bottom pouring arrangement.
- Magnesium Treatment Ladle having 300 kg capacity with Tundish cover
- Geared Pouring ladles having capacity of 150 kg capacity
QC, Testing & Inspection Facilities
We strive to exceed the quality requirements of our esteemed customers. This is possible because of our strict in-process controls at all levels.
Resin Sand Testing Equipment
- Sieve Shaker with sieve set
- Peel Back Tester Digital
- Transverse Strength machine
- Hot Shell Tensile tester.
Chemical Composition Checking Facility
‘Shimatzu’ make Optical Emission Spectrometer PMT Based: Model PDA 5000 and online Display board.
Metallurgical Sample Preparation Facility
‘Chennai Metco ‘make sample preparation machines namely.
- High Speed Spectro Grinder
- Abrasive Cutting machine
- Hydraulic Specimen Mounting Press
- Floor model four-disc Grinder/Polisher
Microstructure Checking Facility
‘Metalsoft’ make Microscope with Image Analysis with Prometal 8.8.6 model MV 625 H
Hardness Checking Facility
‘Fine ‘make Hardness checking machine consist of Brinell and Rockwell hardness
- Core Gas determinate
High Speed Spectro Grinder
Abrasive Cutting machine

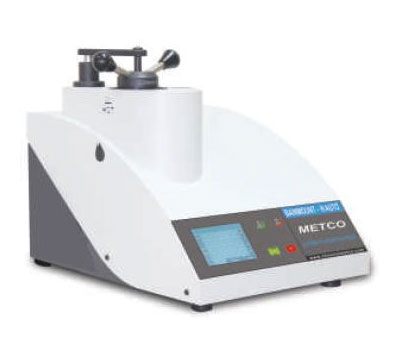

Hydraulic Specimen Mounting Pres
Floor model four-disc Grinder/Polisher
Optical Emission Spectrometer
Hradness Checking
Quality Policy
We at Ratna Udyog, are committed for customer satisfaction through supply of quality finished products, at right price in desired time, with active involvement of employees at all levels through continual improvement & training
Our Global Reach
It is the solution-based approach that has helped us get wide reach across the globe leading us to export more than 40% Export of our products to USA & Europe.
